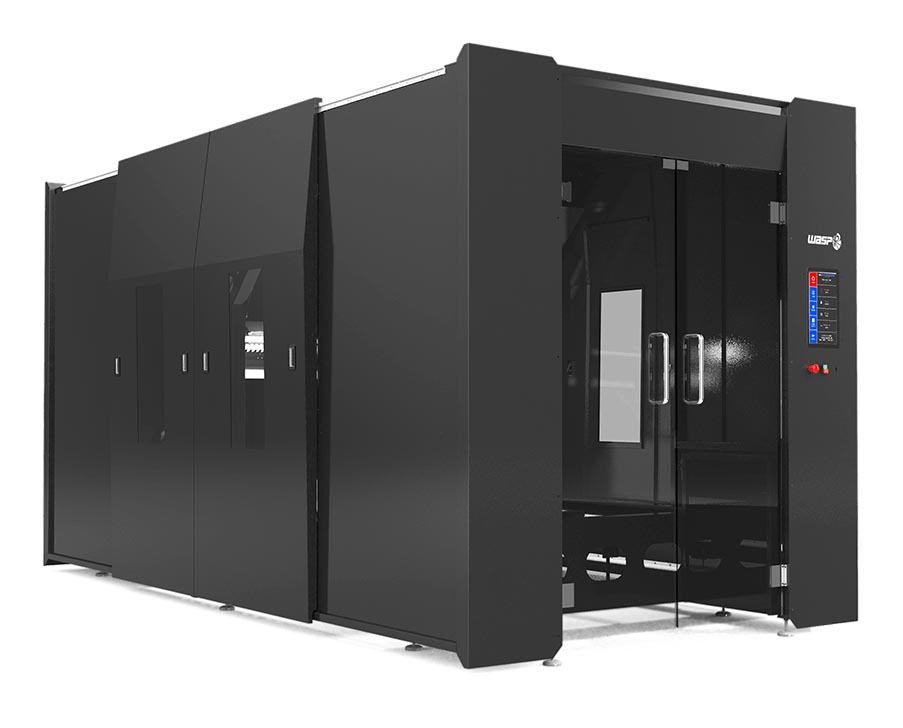

POWER WASP 45 HDP
Large-format pellet 3D printer with 45° technology
The POWER WASP 45 HDP is an industrial 3D printer for large-volume applications with thermoplastic granulate. With a print area of up to 1,500 × 1,100 × 1,000 mm (expandable to 2 meters in length), an inclined print head and a heated build chamber, the system is suitable for the economical production of large objects in a wide range of industries.
The direct processing of pellets significantly reduces the material price compared to filaments. At the same time, the 45° printing technology enables new geometric freedom - without complex support structures.
- Direct pellet pressure (FGF): economical and fast
- Inclined 45° pressure axis: reduces support structures and improves adhesion
- Print volume up to 1,500 × 1,100 × 1,000 mm (can be extended to 2,000 mm length)
- Heated construction chamber (up to 150 °C): reduces warpage in technical materials
- Wide range of materials: PLA, ABS, PETG, PP, ASA, wood pellets, recycled types
- Integrated pellet dryer and vacuum pressure plate
- User-friendly control via touchscreen, LAN, WLAN and USB
Areas of application
The POWER WASP 45 HDP is aimed at professional users who want to produce large components economically:
- Architecture & Design: Models, furniture, molded parts
- Industrial production: Prototypes, tools, mold making
- Research & development: Material tests, test specimens
- Art & scenography: sculptures, stage elements, object construction
- Trade fair and store fitting: displays, structures, custom-made products
Thanks to pellet processing, resource-saving or recycled materials can also be used - a plus point for sustainable production concepts.

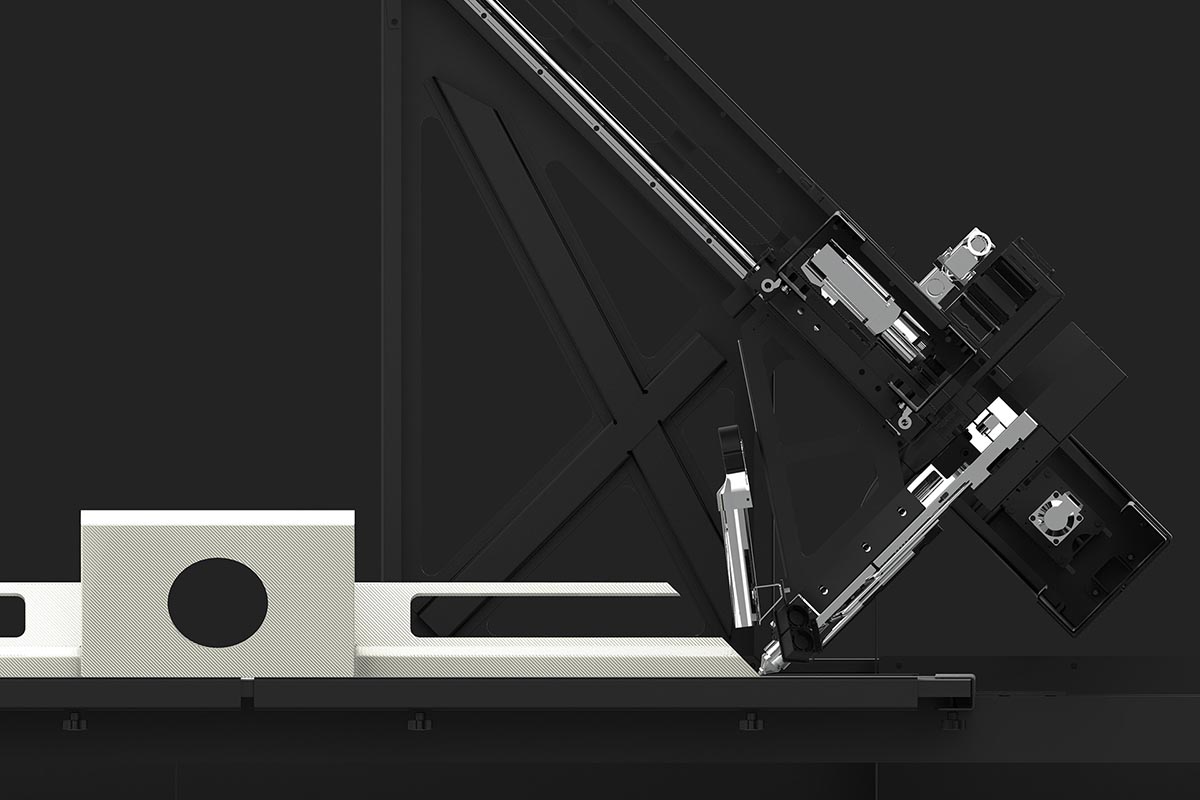

Advantages of 45° printing technology
The inclined pressure axis changes the way layers are built up:
- Reduction of support material through optimized geometry
- Improved layer adhesion due to larger contact surface
- Less thermal stress in the component
- Time saving for large objects
- Better use of installation space for inclined structures
This technology enables clean printing results - even with more complex shapes or technical plastics.
Technical data
| Feature | Value |
|---|---|
| Printing process | Fused granular fabrication (pellet printing) |
| Print volume (standard) | 1'500 × 1'100 × 1'000 mm |
| Print volume (extended) | 2'000 × 1'100 × 500 mm |
| Nozzle diameter | 3 mm (standard), optionally 5 mm |
| Layer height | 0.5 - 3 mm |
| Max. Nozzle temperature | 350 °C |
| Building chamber temperature | up to 150 °C |
| Print speed | up to 100 mm/s |
| Machine dimensions (L × W × H) | 4'730 × 2'460 × 2'600 mm |
| Weight | approx. 1,000 kg (packed approx. 1,800 kg) |
| Power supply | 220-240 V (optional 110 V) |
| Power consumption | max. 3 kW, Ø 1.5 kW |
| Material feed | pneumatic, continuous |
| Operation | 7″ touchscreen, USB, LAN, WLAN |
| Safety equipment | HEPA filter, smoke extraction, closed chamber |
