Intrex labeling modules
Modular labeling solutions for integration into production and packaging machines
Intrex labeling modules are modular labeling solutions for integration into existing packaging and production machines. They handle the precise application of self-adhesive labels and represent the labeling process as a functional module within a line.
Thanks to their compact design, robust mechanics, and flexible control system, Intrex labeling modules are suitable for a wide range of industrial applications—from simple labeling tasks to high-speed lines.
- Modular labeling solutions for machine integration
- Compact design for easy mechanical integration
- Recipe management for recurring labeling tasks
- Ethernet connection for diagnostics and service
- Support for optical and optional ultrasonic label sensors
- Multilingual user interfaces
- Password-protected user levels (operator / maintenance / service)

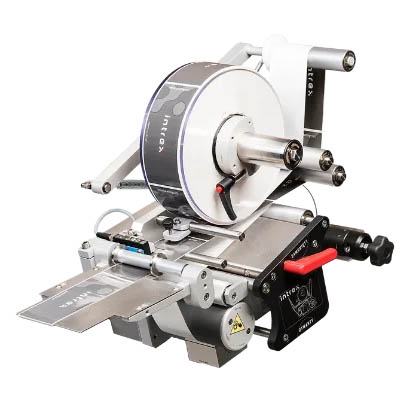

INTREX 50+
Compact labeling module for limited space conditions
The INTREX 50+ is the smallest labeling module in the series and was developed for applications where there is limited installation space available. It is suitable for standard labeling tasks at moderate speeds.
Important features:
- Maximum label width: 90 mm
- Label feed speed: up to 45 m/min
- Multiple labeling (2 or more labels per signal)
- Ethernet connection for remote diagnostics
- Memory for up to 100 labeling recipes
- I/O interfaces for encoder and error signals
- Compact design for easy integration

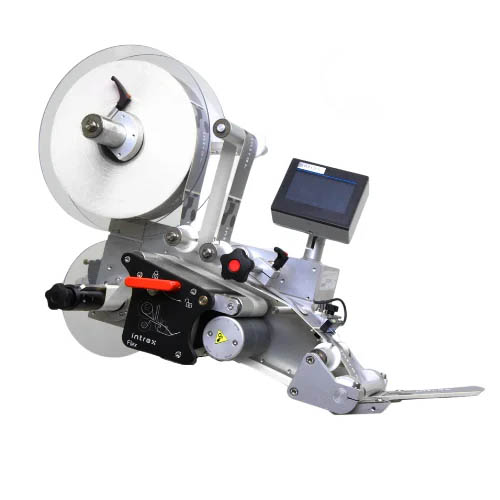

INTREX 100+ FLEX
Flexible labeling module for variable label formats
The INTREX 100+ FLEX is designed for applications where different label widths need to be processed. It is suitable for production lines with changing product formats.
Important features:
- Label widths: 90 mm or 160 mm
- Label feed speed: up to 35 m/min
- Removable touch control panel
- Multilingual user guidance
- Memory for up to 50 recipes
- Compensation for missing labels
- Labeling precision: ± 0.8 mm

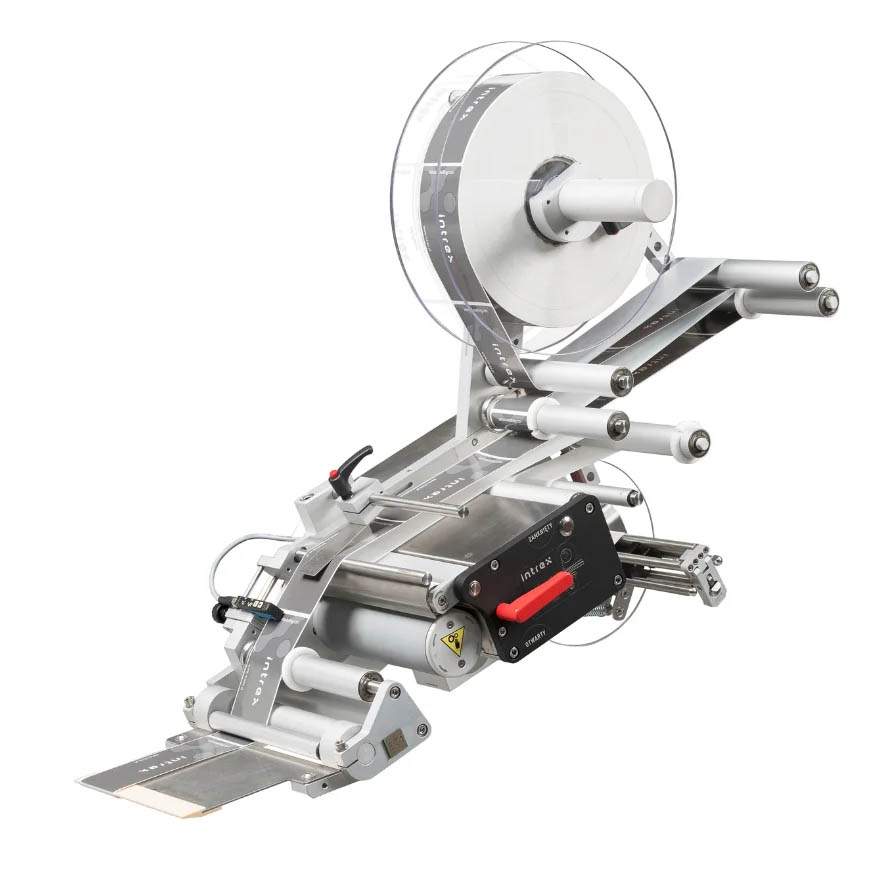

INTREX 200+
Powerful labeling module for higher line speeds
The INTREX 200+ is designed for more demanding applications with higher speeds and advanced control requirements. The module can be flexibly integrated into automated lines.
Important features:
- Label widths: 90 / 160 / 220 mm
- Label feed speed:
- up to 60 m/min
- optional up to 75 m/min
- Multiple labeling (2 or more labels)
- Ethernet connection for remote diagnostics
- Memory for up to 100 recipes
- I/O communication for encoder and printer signals
- Password-protected user levels
- Modular design for future expansion

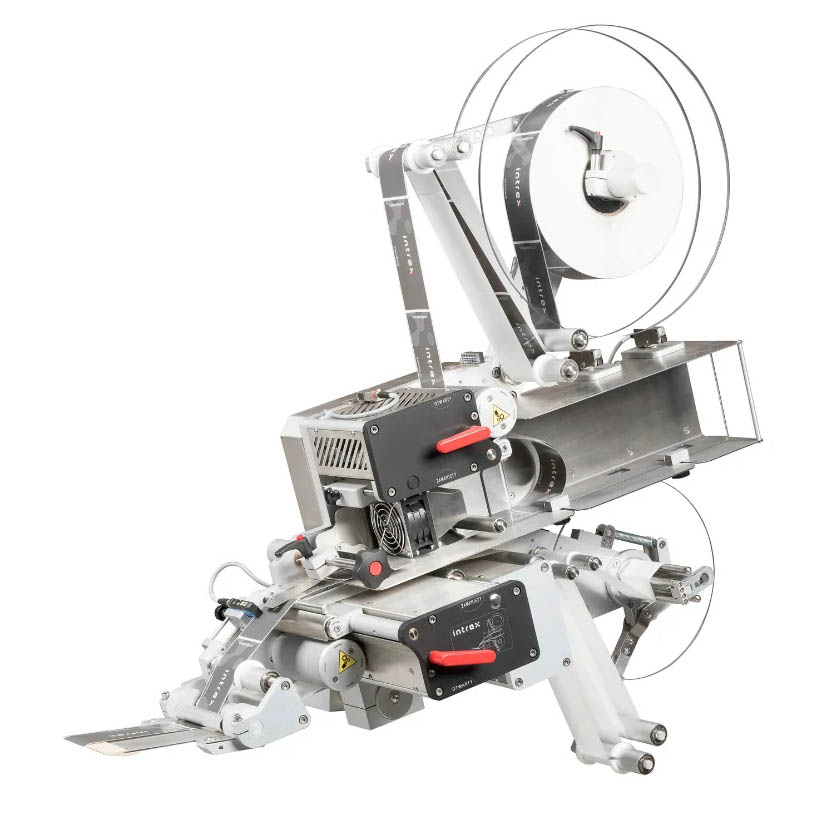

INTREX 300+
High-performance labeling module for high-speed applications
The INTREX 300+ is the most powerful labeling module in the series and was developed for production lines with very high speeds.
Important features:
- Label widths: 90 mm or 160 mm
- Label feed speed: up to 140 m/min
- Redundant system for high-speed lines
- Servomotor main drive
- Multiple labeling (2 or more labels)
- Ethernet connection for remote diagnostics
- Memory for up to 100 recipes
- External HMI for controlling one or more labeling modules
Suitable for the following applications
Electronics
Drinks
Industry
Food
Logistics
Pharmaceuticals
Tobacco
Video
