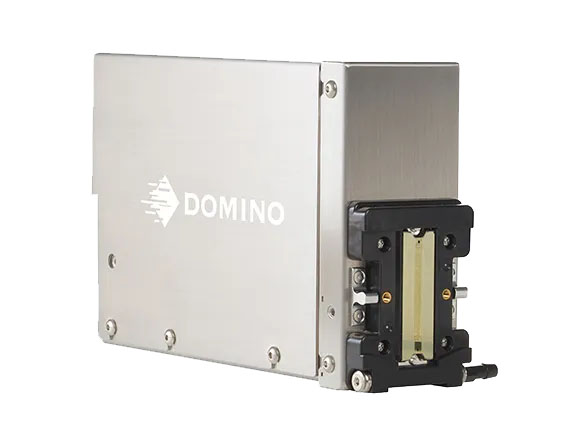

Domino Cx Series | Large Character Printer
High-resolution large character printing for absorbent and non-absorbent surfaces
The Domino Cx series offers precise, large-format marking for a wide range of industrial applications.
With the two models Cx150i and Cx350i, it covers the entire spectrum of materials - from absorbent to non-absorbent surfaces. Both systems are based on proven piezo inkjet technology and impress with their high print quality, minimal maintenance and sustainable ink technologies.
Whether corrugated cardboard, wood, plasterboard, plastic or coated cardboard - the Cx series enables razor-sharp printing of text, logos, barcodes or serial numbers directly onto the product or packaging.
- High-resolution drop-on-demand inkjet technology
- Industry 4.0-capable - integration into ERP and MES systems
- Domino Cloud for remote monitoring and production analysis
- QuickStep touchscreen operation - intuitive and low-maintenance
- Sustainable inks: UV-curing or vegetable oil-based
- No label waste, no compressed air required
Domino Cx150i
For non-absorbent materials
The Cx150i was developed for smooth or coated surfaces.
It works with UV-curing inks that cure immediately after printing in combination with the UV150 LED system. This makes it ideal for outer packaging made of plastic, coated cardboard or glossy materials.
- Print resolution up to 300 × 600 dpi
- UV inks with low VOC content
- Minimal maintenance, no compressed air required
- 500 ml ink bag for high availability
- Domino Automation and Domino Cloud for seamless integration
- Optional UV150 LED curing unit (12 W/cm² @ 395 nm)
Domino Cx350i
For absorbent materials
The Cx350i is the robust solution for marking absorbent materials such as corrugated cardboard, wood, plaster or building materials.
It uses vegetable oil-based inks and achieves clear, high-contrast print images even at high production speeds.
- Print height up to 65 mm (can be combined for larger formats)
- Environmentally friendly vegetable oil ink instead of solvent
- No label waste, no compressed air required
- Maintenance-free operation
- Compatible with Domino Automation and Domino Cloud
- Ideal for building materials, wood and paper packaging
Efficient large character coding of cardboard packaging
The Domino Cx350i offers a precise and environmentally friendly solution for the direct marking of packaging made of cardboard, corrugated cardboard and paper-based materials. Whether large shipping cartons, shelf-ready packaging or tray packaging - the Cx350i ensures precise and high-contrast markings. Brand logos, product batch information or machine-readable barcodes such as GS1-128 and GTIN-14 are printed in razor-sharp quality. The elimination of pre-printed labels reduces stock levels and waste, while the environmentally friendly vegetable oil-based inks promote sustainability.
Domino Cx350i brochureRobust and versatile labeling for a wide range of materials
The Domino Cx series printers are designed for demanding industrial applications - from porous building materials such as fiberboard or plasterboard to smooth and coated packaging.
They produce precise, abrasion-resistant markings directly on the surface, ideal for product labels, serial numbers or batch data.
The print quality remains consistent even at high production speeds of over 100 m/min.
Depending on the model, quick-drying vegetable oil-based inks or UV-curing inks are used to ensure permanently legible and durable marking, even under harsh storage and transport conditions.
Seamless integration and intelligent production
The Domino Cx series printers can be flexibly integrated into almost any production line - from packaging to building materials and other industrial applications.
The modular print heads, available in different variants and sizes, can be mounted from above, below or on inclined surfaces, depending on the application.
Thanks to extensive interfaces such as EtherNet/IP, Dynamark protocol and Domino Cloud Interface, the systems are ideally suited for Industry 4.0 environments.
The Domino QuickDesign and Automation solutions allow print data to be automatically transferred from MES or ERP systems, while the Domino Cloud enables real-time monitoring and analysis of printer performance - for maximum transparency and efficiency in production.
Suitable for the following applications
Packaging industry
Building materials manufacturer
Logistics
Food industry
Furniture and wood industry
Further information on the Cx350i large character printer
How drop-on-demand piezo inkjet technology works
The Domino Cx350i uses drop-on-demand piezo inkjet technology to print ink precisely and efficiently onto porous materials. The print heads contain piezoelectric crystals that are minimally deformed by electrical impulses. This deformation creates a controlled pressure in the ink channel, whereby a drop of ink is precisely ejected from the nozzle.
The technology works without contact, which means that the ink is shot directly onto the surface without touching the substrate. This ensures that even sensitive or uneven materials such as cardboard, corrugated cardboard or plasterboard can be printed on without any problems.
Resolution is achieved through precise control of drop speed and size, with horizontal resolution of up to 300 dpi. Vertical resolution is optimized to 150 dpi to ensure efficient ink consumption on large print areas. Each drop is precisely placed to ensure clear edges and high legibility of text and barcodes.
The technology does not require compressed air and works with vegetable oil-based inks that have been specially developed for fast drying and permanent adhesion. This makes the process not only precise, but also economical and environmentally friendly.
