The S-EM is a camera that is used under the toughest conditions. This high-speed camera is specially equipped with the functionality required for airborne separation tests. The MIL 810 / MIL 461 approved camera is used in many defense system tests around the world. With a few simple steps, this camera can be adapted to your needs (e.g. interface signals, connectors, etc.).

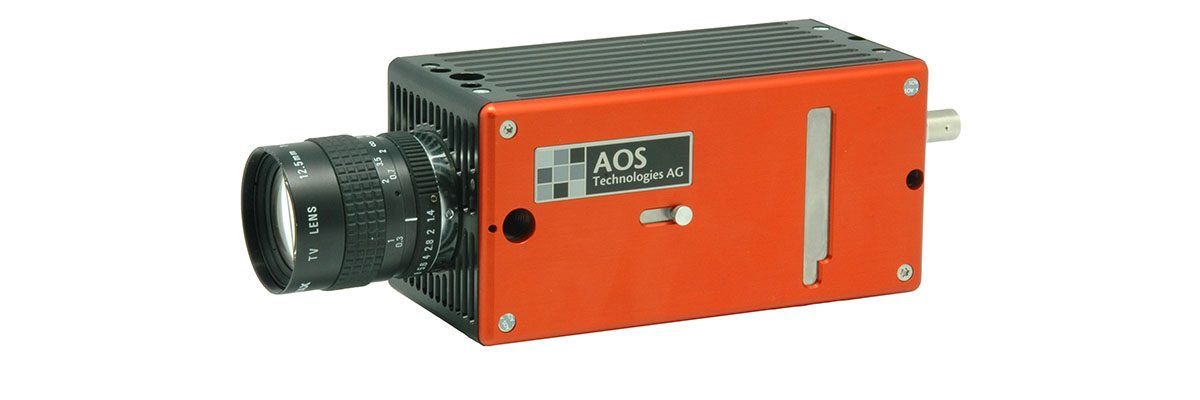

AOS S-EM
MIL 810 / MIL 461 certified Highspeed camera.
Further information
-
Specifications
Mount: C-mount
Sensor size: 1 inch
Maximum image resolution: 1280 x 1024 pixels
Frames per second: 500 fps
Maximum frame rate: 100`000 fps at 1280 x 8 pixels
Memory: 1.3 GB
Recording time: 1000 images
Sensor pixels: 14.00 x 14.00 µm
Speed at HD resolution: 826 fps
Speed at 512 x 512 pixels: 2117 fps
IRIG B function: Yes
Shutter speed: 1 µs
Input: Sync-in, Trigger-in
Output: Sync-Out
Image memory: RAM memory
Micro SD compatible:
Shock resistance up to: 100G all axes for 10msec
Vibration up to: 200G
Weight: 0.9 KG
Dimensions (W x H x L): 72 x 72 x 137mm (W x H x L) -
Optional accessories
Battery: 3h battery life
Memory expansion: 2.6 / 5.2 / 10.4 GB
Card slot: CF
