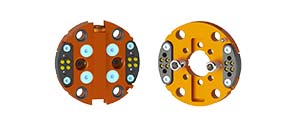

ATI QC series tool changer
Tool changers in various sizes for industrial robot systems.

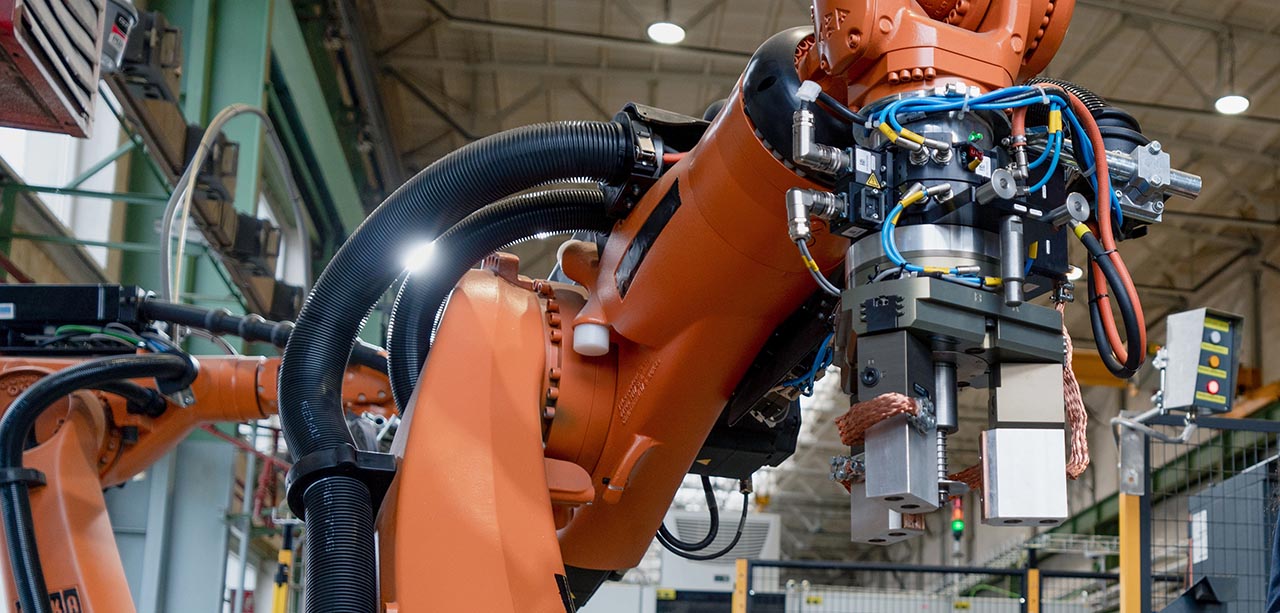

The QC series tool changers from ATI Industrial Automation offer a reliable solution for automated tool changes in industrial robot systems. The models cover a broad spectrum - from very compact variants for smaller robot systems to robust versions for high load and torque requirements. All tool changers are based on a precise, mechanical locking mechanism and can be expanded with media modules if required. This allows processes to be designed flexibly and the change between different end effectors to be automated without manual intervention.
Get in touch with usHighlights
Reliable locking mechanism
Mechanical connection with high repeat accuracy for stable tool changes.
Large selection of sizes
Models from very compact to heavy-duty for different load and torque requirements.
Expandable with media modules
Transmission of compressed air, electrical signals or data depending on process requirements.
Robust design
Designed for industrial environments and heavy-duty continuous operation.
Simple integration
Interfaces in accordance with ISO-9409-1 enable connection to common robot systems.

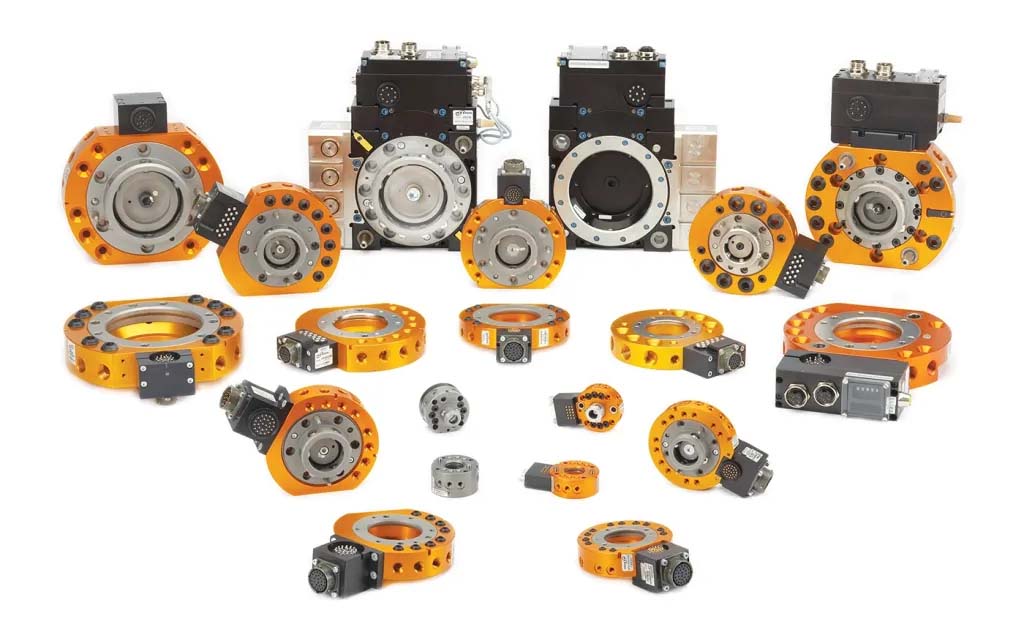

Bandwidth of the QC series
The QC series tool changers cover the entire spectrum of robot systems - from compact units for lightweight robots to robust models for heavy-duty industrial robots. This makes the series suitable for applications ranging from simple handling tasks to demanding machining and assembly processes.
Listed below are the models that we offer as standard and which cover the majority of typical industrial applications. For complete specifications, please refer to the ATI Industrial Automation data sheets.
Numerous other models and special variants are also available on request.
Model overview
| Model | Recommended load capacity | Exact specifications | |
|---|---|---|---|
 | QC01 | 1.4 kg | Manufacturer page |

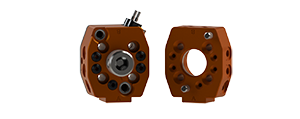

 | QC07 | 16 kg | Manufacturer page |

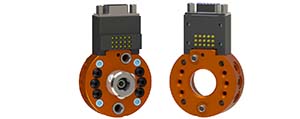

 | QC11 | 16 kg | Manufacturer page |

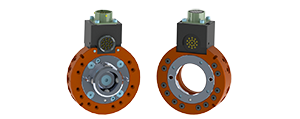

 | QC20 | 25 kg | Manufacturer page |
 | QC21 | 25 kg | Manufacturer page |

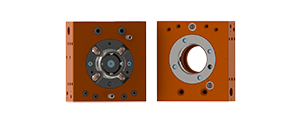

 | QC29 | 35 kg | Manufacturer page |
 | QC40Q | 50 kg | Manufacturer page |

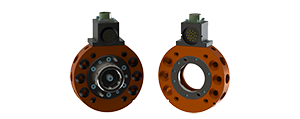

 | QC41 | 50 kg | Manufacturer page |
 | QC46 | 50 kg | Manufacturer page |

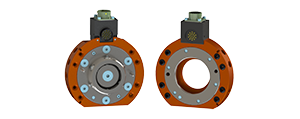

 | QC60 | 75 kg | Manufacturer page |
 | QC71 | 79 kg | Manufacturer page |

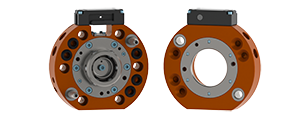

 | QC76 | 100 kg | Manufacturer page |

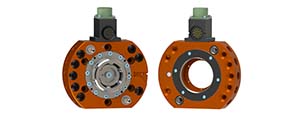

 | QC110 | 150 kg | Manufacturer page* |

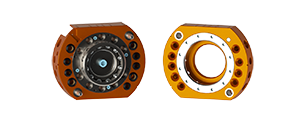

 | QC160 | 300 kg | Manufacturer page |
Compatibility
The models in the QC series follow common industrial interfaces, including ISO-9409-1, allowing them to be integrated into most robot systems, from lightweight robots to large industrial robots. If required, we can support you in selecting the right size and interface configuration.

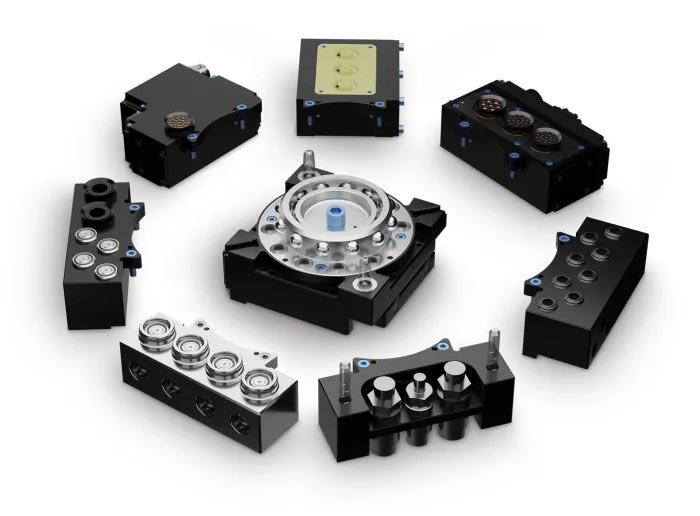

Extension modules
A large selection of optional modules is available for the QC series tool changers. These enable the transfer of electricity, air, vacuum or other media between the robot arm and the end-of-arm tool. Control and valve modules are also available to communicate with the tool changer and control the locking and unlocking mechanism. This allows the range of functions to be flexibly expanded depending on the application.
