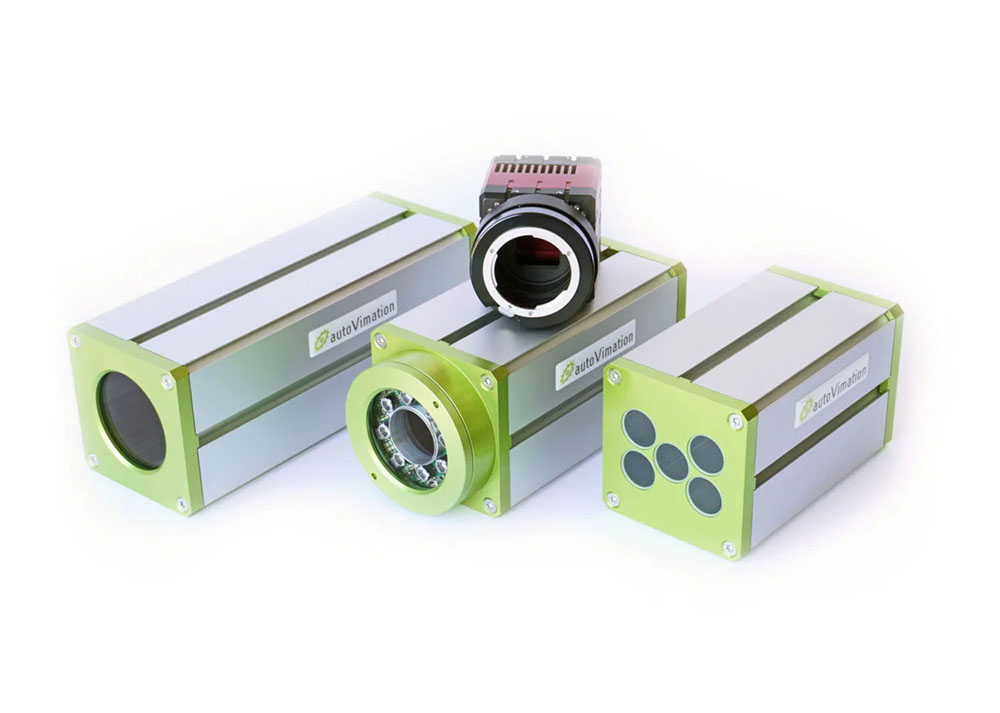

Stingray protective housing

Stingray protective housing

IP66 protection for larger cameras up to 75 x 75mm cross-section

  • Excellent heat dissipation thanks to optimized mounting
  • Compatible with cameras up to 75×75 mm cross-section and lenses up to 78 mm diameter
  • Optimized for the Meganova ring light for perfect illumination
  • Low weight for easy handling
  • BK7 or acrylic windows for cameras up to 2500 nm
  • Sapphire window (2″) for SWIR cameras up to 7 µm
  • Germanium windows for LWIR cameras in the 7-14 µm range
  • Dome window for use with fisheye lenses
  • Special cover for IFM/Lucid TOF cameras
  • Extensions for easy lens access
  • Optional blow-off devices and protective flaps for additional protection
  • Heating and water cooling options for temperature control
  • Desired color for an individual design
  • Wide range of accessories for maximum flexibility
Get in touch with us

Matching the cameras:

The Stingray is also suitable for all smaller cameras that are not included in this list.

  • AOS N-EM, Q-PRI, Q-Mize 180, VIT
  • AV Bonito Pro
  • Avio InfRec TS600
  • Basler Runner
  • Baumer AX, QX
  • Birddog PF120
  • BlueVision BV-C5xxx
  • BZB Gear BSHA, BSAHN
  • CIS VCC-SXCXP1SW, VCC-20CXP6x
  • Dalsa Linea
  • Eosens Mini
  • Emergent Xtreme, Zenith
  • Everet EVZ220
  • Fastec HiSpec
  • First Light C-Blue, C-Red 2
  • Flir A6xx
  • HIK CL series (not all types)
  • HinaLea 4200C
  • Hitachi HV-HD33
  • ICI FMX 320/640
  • IDS uEye Warp10
  • IDT OS, XS
  • IFM TOF (with special lid)
  • Ikegami ISD-2500HD
  • Illunis EMC
  • Imaging Source DFK 39GXxxx-Z20
  • iRayple AX5A22CX050E
  • IX Cameras i-SPEED 203, 210, 220
  • Jai Spark
  • Kaya Jetcam
  • Kitotec KITOCAM HDMI
  • Lucid Helios (with special lid)
  • Lumenera Lg11059
  • Lumens VC-BC
  • Marshall CV355-30X-NDI
  • Mikrotron Quad, Mini GigE
  • Novitec i-Nova3, i-Nova4 Zoom, g-Nova3D
  • Optosky ATH1500
  • Optronis CamPerform Cyclone
  • pco. Panda
  • Phasics SID4 WATCH
  • Photron Fastcam Mini CX
  • Pomeas Large Format Cameras
  • Procemex Flex
  • Roseek Cheetah
  • Resonon Pika IR-L
  • Schmersal AM-T100
  • Sensors Unlimited 1024-LDM
  • SVS Vistek HR
  • Vieworks VP
  • Vision&Control pictor C300, T300
  • Xenics Ceres T 1280, Xeva
  • Z3Cam-4K™
  • and much more.
