NorPix TroublePix
Continuous video monitoring and immediate diagnostics right at the machine.
TroublePix is a specialized software solution for monitoring and troubleshooting manufacturing processes. The system enables the seamless recording of fast-moving processes in a ring buffer, allowing sporadic errors to be analyzed immediately in slow motion without interrupting ongoing operations.

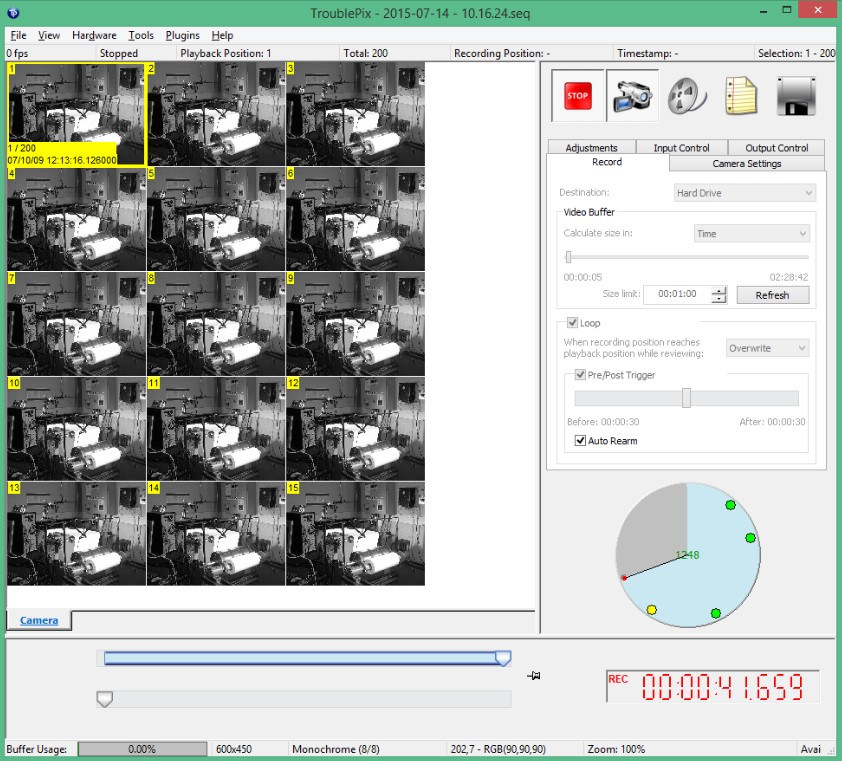

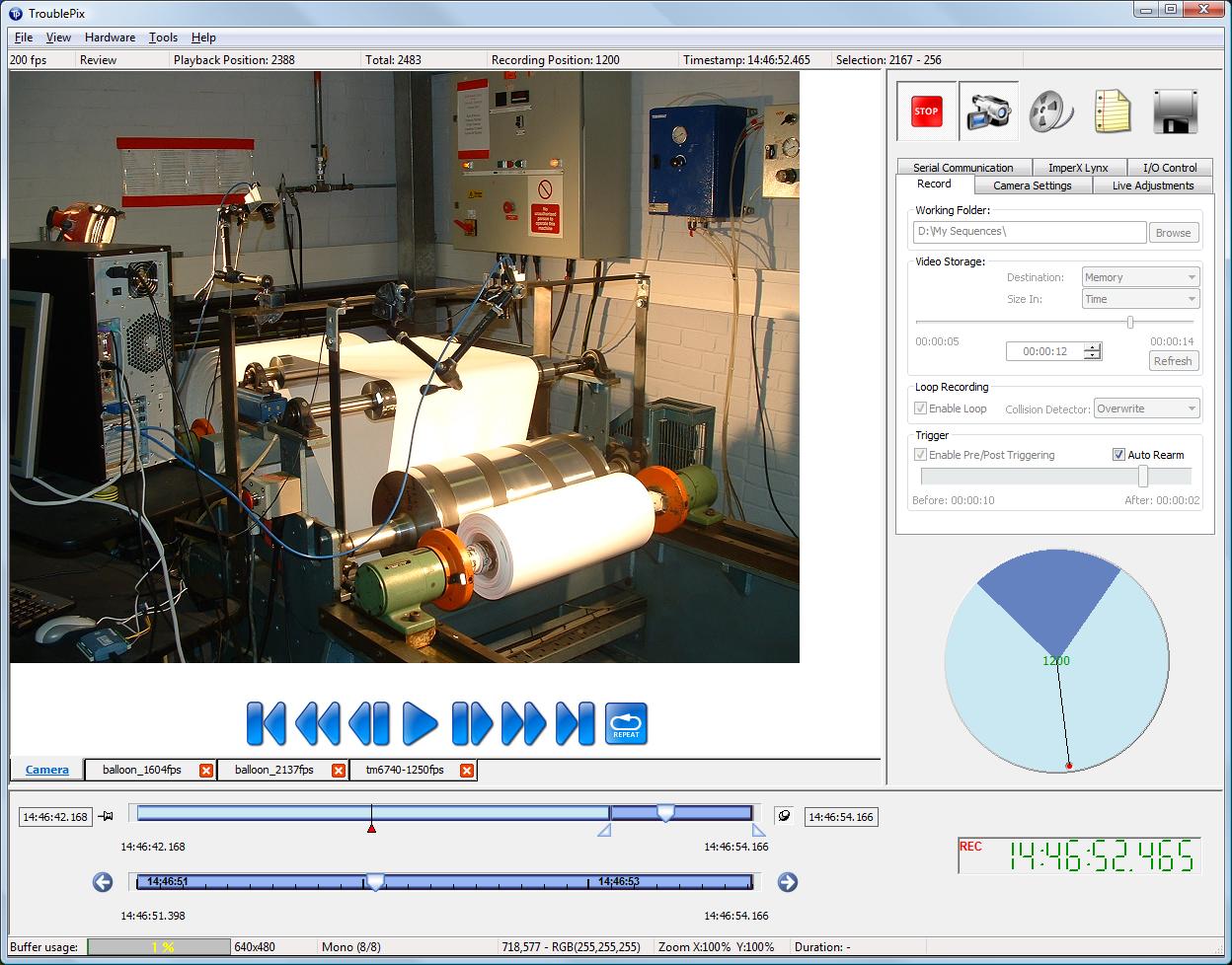

- Intuitive operation: The user interface is specifically optimized for technical staff in manufacturing. Data capture, display, and analysis are all performed in a single, clear view.
- Efficient loop recording: Continuous recording to a circular buffer (continuous looping). When an event occurs, the sequences before and after the trigger (pre- and post-trigger) are permanently saved.
- Instant error analysis: Quickly switch between live view and slow-motion playback to identify the causes of errors in real time.
- Extensive hardware compatibility: Supports over 200 camera types (GigE Vision, USB 3.0, Camera Link, CoaXPress). Fiber-optic options allow for long distances between the camera and the PC.
- Scalability: Solutions for single cameras or complex multi-camera systems with up to 16 synchronized cameras per computer.
Optimized Pre/Post-Triggering
TroublePix allows for manual or automated triggering of recordings. By adjusting the pre- and post-trigger durations, you can precisely specify how many frames to save before and after an event. This saves a significant amount of storage space, as only the relevant error situations are archived.

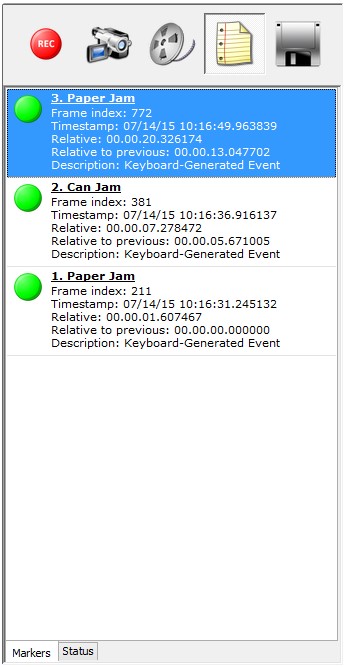

Event Marker and Review
During recording or playback, important events can be marked with a single mouse click. These event markers allow you to quickly jump to critical points within long sequences. Playback can be done forward, backward, or frame-by-frame (slow motion) to reveal even the slightest mechanical issues.

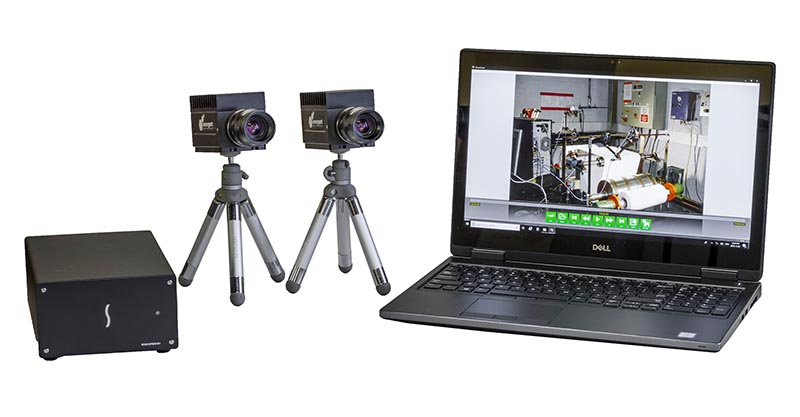

Turnkey systems
For demanding industrial applications, TroublePix is available as a preconfigured complete system (portable or desktop). These systems are hardware-optimized for high data rates and are ready for immediate use, which minimizes the time required for integration into existing production lines.
